MIC2103 - Synchronous Buck Controllers

Datasheet Summary

Description

The Micrel MIC2103/04 are constant-frequency, synchronous buck controllers featuring a unique adaptive ON-time control architecture.

The MIC2103/04 operates over an input supply range from 4.5V to 75V and can be used to supply up to 15A of output current.

Features

  • to ensure protection of the IC during fault conditions. These include under.

📥 Download Datasheet

Datasheet preview – MIC2103

Datasheet Details

Part number MIC2103
Manufacturer Micrel Semiconductor
File Size 1.36 MB
Description Synchronous Buck Controllers
Datasheet download datasheet MIC2103 Datasheet
Additional preview pages of the MIC2103 datasheet.

📁 Similar Datasheet

  • MIC2125 - 28V Synchronous Buck Controllers (Microchip)
  • MIC2126 - 28V Synchronous Buck Controllers (Microchip)
  • MIC2127A - Synchronous Buck Controller Featuring Adaptive On-Time Control (Microchip)
  • MIC2128 - Synchronous Buck Controller (Microchip)
  • MIC2132 - Advanced COT Buck Controller (Microchip)
  • MIC2133 - Advanced COT Buck Controller (Microchip)
  • MIC2155 - Two-Phase Single-Output PWM Synchronous Buck Controller (Microchip)
  • MIC2171 - 2.5A Switching Regulator (Microchip)
  • MIC2172 - 1.25A Switching Regulators (Microchip)
  • MIC2177 - 2.5A Synchronous Buck Regulator (Microchip)
Other Datasheets by Micrel Semiconductor
  • MIC2101 - 38V Synchronous Buck Controllers
  • MIC2102 - 38V Synchronous Buck Controllers
  • MIC2104 - Synchronous Buck Controllers
  • MIC2111 - Single-Phase Multi-Mode High-Performance Step-Down PWM Controller
  • MIC2111B - Step-Down Controller
  • MIC2124 - Synchronous Current Mode Buck Controller
  • MIC2130 - High Voltage Synchronous Buck Controller
  • MIC2131 - High Voltage Synchronous Buck Controller

Full PDF Text Transcription

Click to expand full text

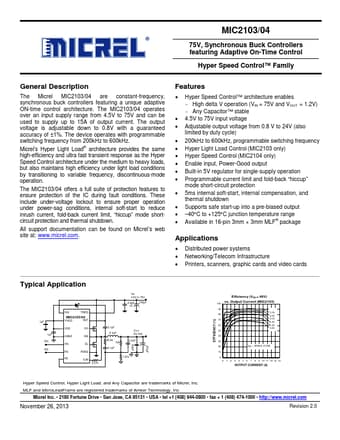

MIC2103/04 75V, Synchronous Buck Controllers featuring Adaptive On-Time Control Hyper Speed Control™ Family General Description The Micrel MIC2103/04 are constant-frequency, synchronous buck controllers featuring a unique adaptive ON-time control architecture. The MIC2103/04 operates over an input supply range from 4.5V to 75V and can be used to supply up to 15A of output current. The output voltage is adjustable down to 0.8V with a guaranteed accuracy of ±1%. The device operates with programmable switching frequency from 200kHz to 600kHz.
