MIC2126 - 28V Synchronous Buck Controllers

This page provides the datasheet information for the MIC2126, a member of the MIC2125 28V Synchronous Buck Controllers family.

Datasheet Summary

Description

The MIC2125 and MIC2126 are consta

Features

  • Hyper Speed Control Architecture Enables: - High delta V operation (VIN = 28V and VOUT = 0.6V) - Any Capacitor™ stable.
  • 4.5V to 28V Input Voltage.
  • Adjustable Output Voltage from 0.6V to 24V.
  • 200 kHz to 750 kHz Programmable Switching Frequency.
  • HyperLight Load® (MIC2125).
  • Hyper Speed Control® (MIC2126).
  • Enable Input and Power Good Output.
  • Built-in 5V Regulator for Single-Supply Operation.
  • Programmable current limit.

📥 Download Datasheet

Datasheet preview – MIC2126

Datasheet Details

Part number MIC2126
Manufacturer Microchip
File Size 1.16 MB
Description 28V Synchronous Buck Controllers
Datasheet download datasheet MIC2126 Datasheet
Additional preview pages of the MIC2126 datasheet.

📁 Similar Datasheet

  • MIC2124 - Synchronous Current Mode Buck Controller (Micrel Semiconductor)
  • MIC2101 - 38V Synchronous Buck Controllers (Micrel Semiconductor)
  • MIC2102 - 38V Synchronous Buck Controllers (Micrel Semiconductor)
  • MIC2103 - Synchronous Buck Controllers (Micrel Semiconductor)
  • MIC2104 - Synchronous Buck Controllers (Micrel Semiconductor)
  • MIC2111 - Single-Phase Multi-Mode High-Performance Step-Down PWM Controller (Micrel Semiconductor)
  • MIC2111B - Step-Down Controller (Micrel Semiconductor)
  • MIC2130 - High Voltage Synchronous Buck Controller (Micrel Semiconductor)
  • MIC2131 - High Voltage Synchronous Buck Controller (Micrel Semiconductor)
  • MIC2141 - Micropower Boost Converter (Micrel Semiconductor)
Other Datasheets by Microchip
  • MIC2125 - 28V Synchronous Buck Controllers
  • MIC2127A - Synchronous Buck Controller Featuring Adaptive On-Time Control
  • MIC2128 - Synchronous Buck Controller
  • MIC2132 - Advanced COT Buck Controller
  • MIC2133 - Advanced COT Buck Controller
  • MIC2155 - Two-Phase Single-Output PWM Synchronous Buck Controller
  • MIC2171 - 2.5A Switching Regulator
  • MIC2172 - 1.25A Switching Regulators

Full PDF Text Transcription

Click to expand full text

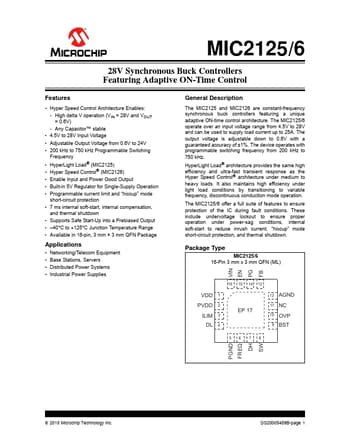

MIC2125/6 28V Synchronous Buck Controllers Featuring Adaptive ON-Time Control Features • Hyper Speed Control Architecture Enables: - High delta V operation (VIN = 28V and VOUT = 0.6V) - Any Capacitor™ stable • 4.5V to 28V Input Voltage • Adjustable Output Voltage from 0.
