PIC16F873A - Flash Microcontrollers

Product Overview

Microchip

Part number	PIC16F873A
Manufacturer	Microchip
File Size	2.03 MB
Description	Flash Microcontrollers
Datasheet	PIC16F873A Datasheet

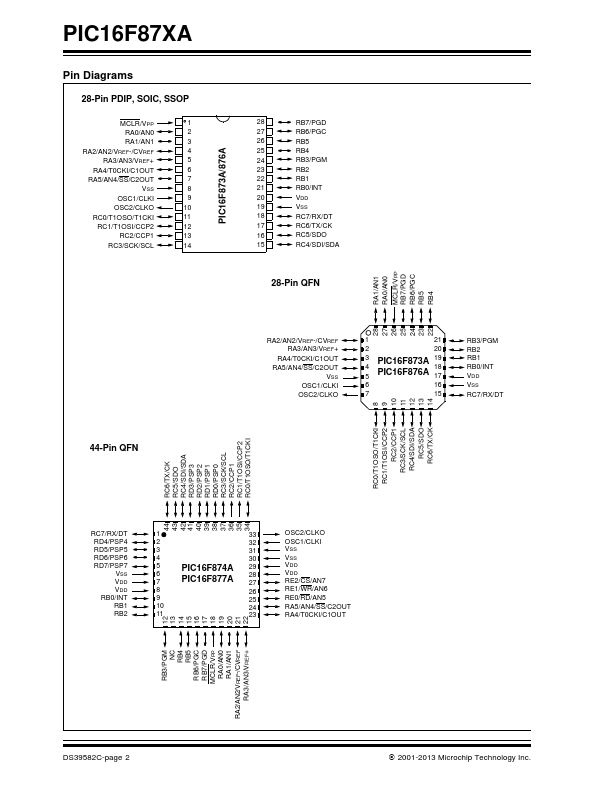

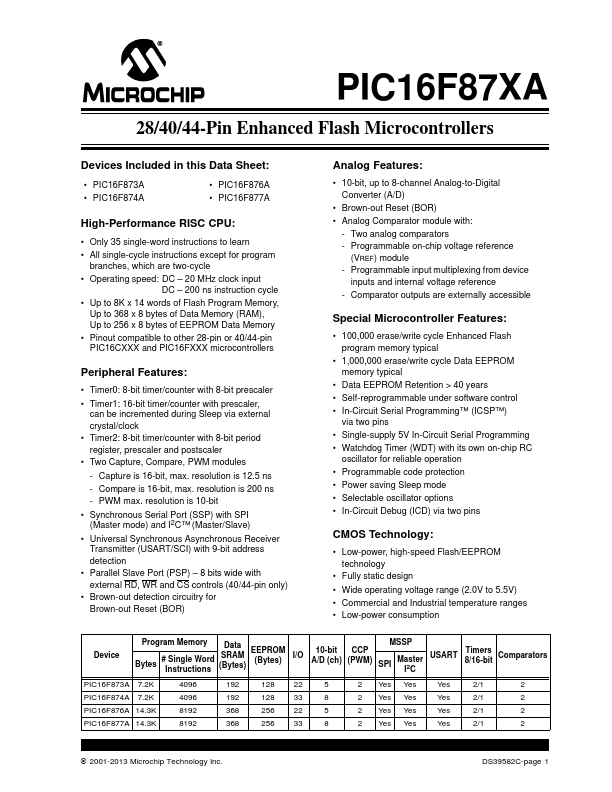

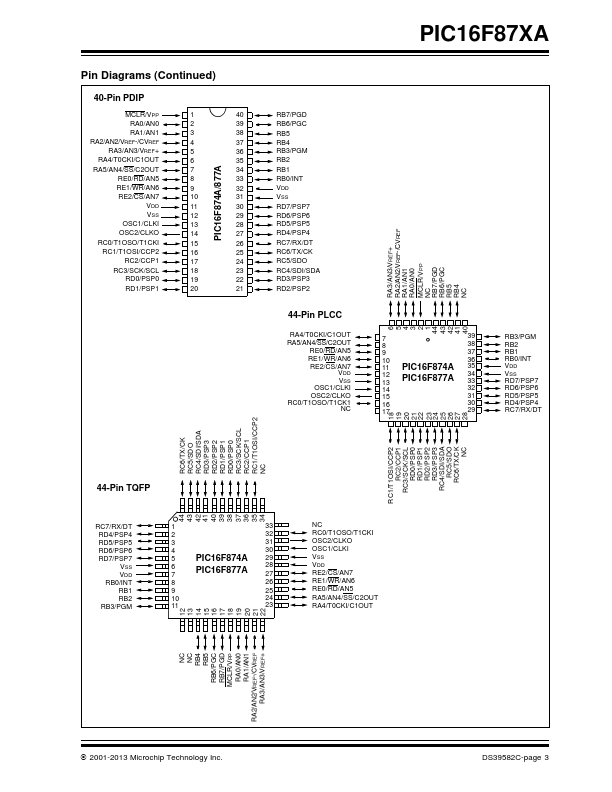

Additional preview pages of the PIC16F873A datasheet.

Timer0: 8-bit timer/counter with 8-bit prescaler.
Timer1: 16-bit timer/counter with prescaler, can be incremented during Sleep via external crystal/clock.
Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler.
Two Capture, Compare, PWM modules - Capture is 16-bit, max. resolution is 12.5 ns - Compare is 16-bit, max. resolution is 200 ns - PWM max. resolution is 10-bit.
Synchronous Serial Port (SSP) with SPI (Master mode) a.
