PIC16F874 - 8-Bit CMOS FLASH Microcontrollers

Product Overview

Microchip

Part number	PIC16F874
Manufacturer	Microchip
File Size	1.97 MB
Description	8-Bit CMOS FLASH Microcontrollers
Datasheet	PIC16F874 Datasheet
Note	This datasheet PDF includes multiple part numbers: PIC16F874, PIC16F873. Please refer to the document for exact specifications by model.
Additional preview pages of the PIC16F874 datasheet.

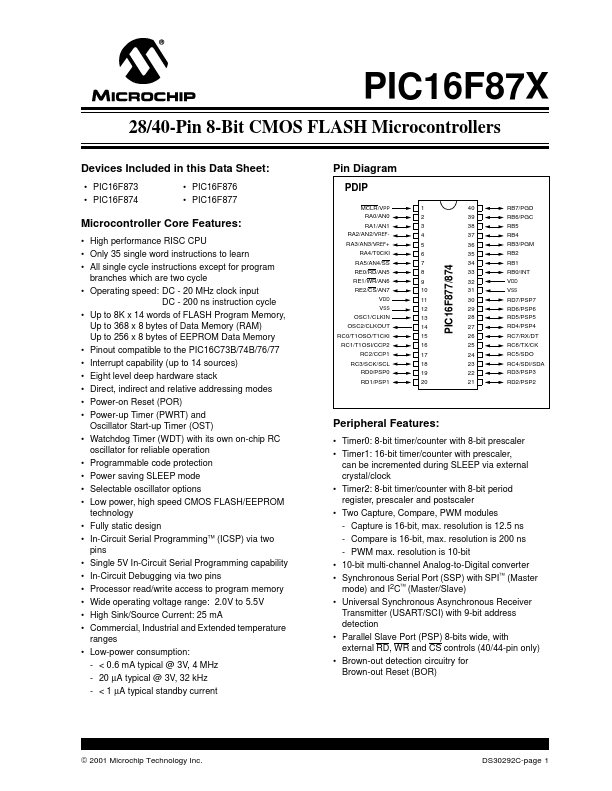

High performance RISC CPU.
Only 35 single word instructions to learn.
All single cycle instructions except for program branches which are two cycle.
Operating speed: DC - 20 MHz clock input DC - 200 ns instruction cycle.
Up to 8K x 14 words of FLASH Program Memory, Up to 368 x 8 bytes of Data Memory (RAM) Up to 256 x 8 bytes of EEPROM Data Memory.
Pinout compatible to the PIC16C73B/74B/76/77.
Interrupt capability (up to 14 sources).
