PIC16F874A, PIC16F873A Flash Microcontrollers

PIC16F874A Description

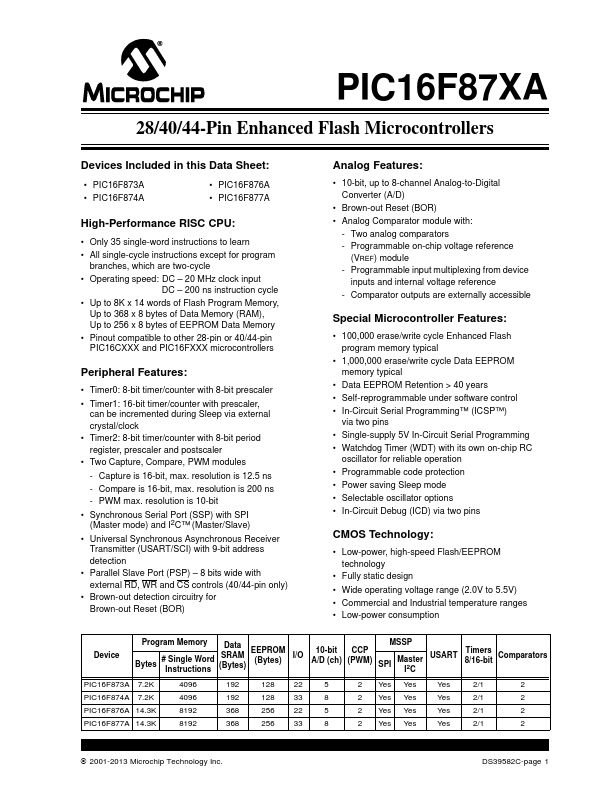

PIC16F87XA 28/40/44-Pin Enhanced Flash Microcontrollers Devices Included in this Data Sheet: * PIC16F873A * PIC16F874A * PI.

PIC16F874A Features

* Timer0: 8-bit timer/counter with 8-bit prescaler
* Timer1: 16-bit timer/counter with prescaler, can be incremented during Sleep via external crystal/clock
* Timer2: 8-bit timer/counter with 8-bit period register, prescaler and postscaler
* Two Capture, Compare, PWM

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PIC16F874A, PIC16F873A. Please refer to the document for exact specifications by model.

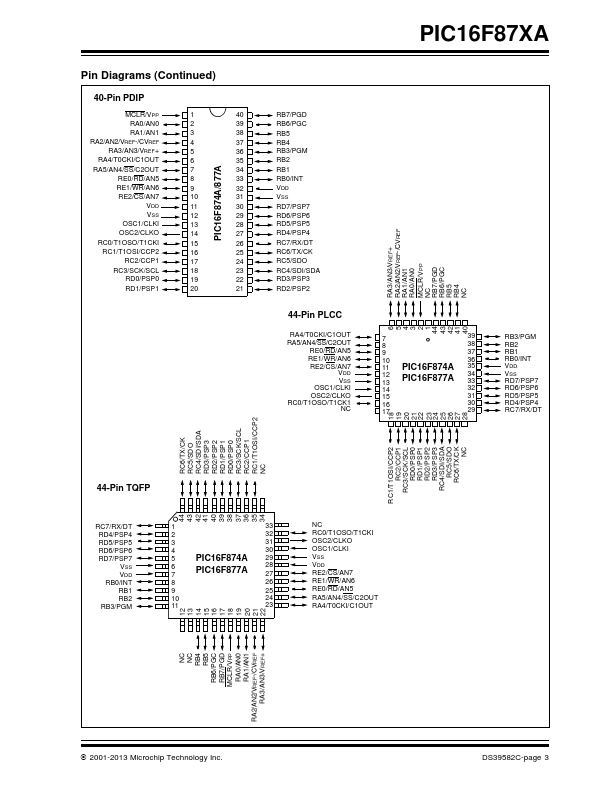

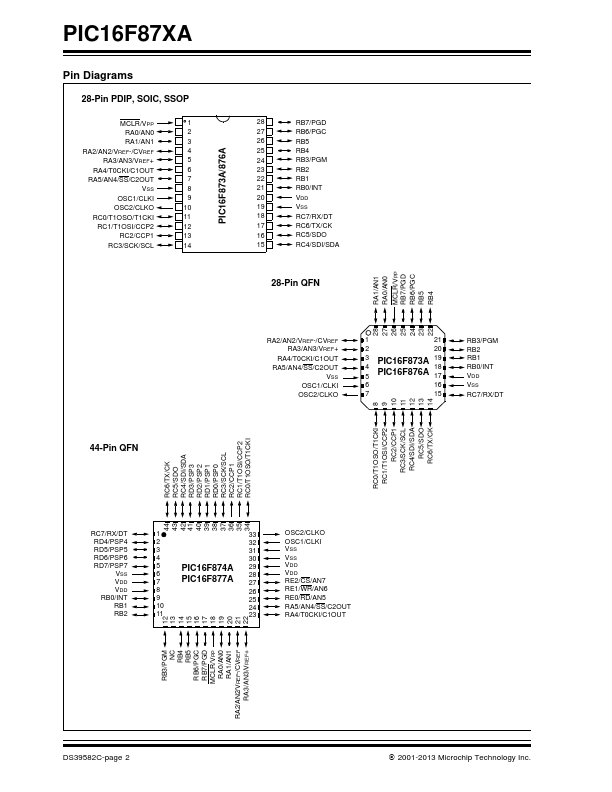

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PIC16F874A, PIC16F873A
Manufacturer
Microchip ↗
File Size
2.03 MB
Datasheet
PIC16F873A-Microchip.pdf
Description
Flash Microcontrollers
Note
This datasheet PDF includes multiple part numbers: PIC16F874A, PIC16F873A.
Please refer to the document for exact specifications by model.
