PIC16F88, PIC16F87 Flash MCU

PIC16F88 Description

PIC16F87/88 18/20/28-Pin Enhanced Flash MCUs with nanoWatt Technology Low-Power .

PIC16F88 Features

* Power-Managed modes: - Primary Run: RC oscillator, 76 A, 1 MHz, 2V - RC_RUN: 7 A, 31.25 kHz, 2V - SEC_RUN: 9 A, 32 kHz, 2V - Sleep: 0.1 A, 2V
* Timer1 Oscillator: 1.8 A, 32 kHz, 2V
* Watchdog Timer: 2.2 A, 2V
* Two-Speed Oscillator Start-up Oscillators:

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: PIC16F88, PIC16F87. Please refer to the document for exact specifications by model.

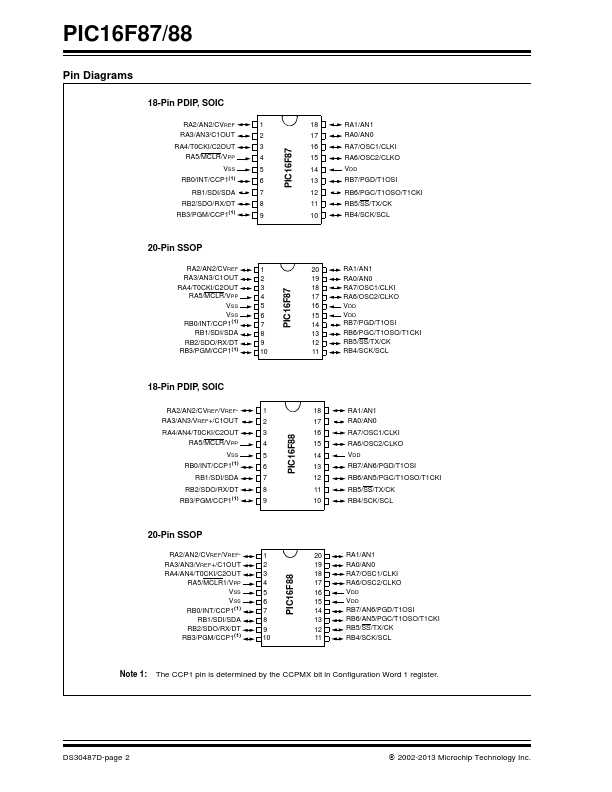

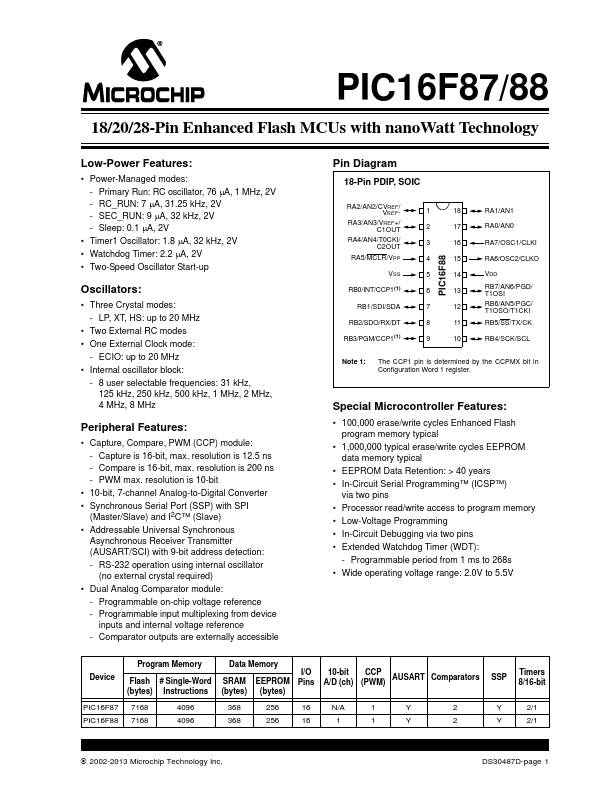

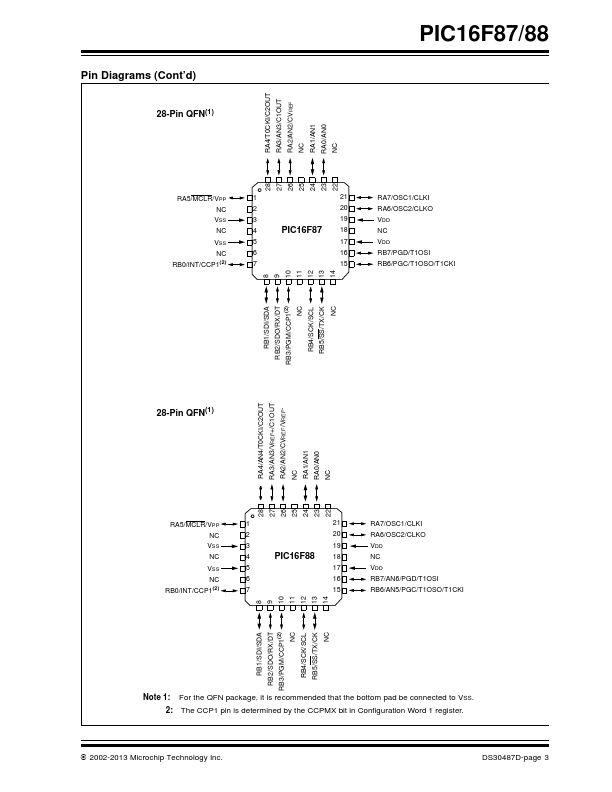

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PIC16F88, PIC16F87
Manufacturer
Microchip ↗
File Size
2.40 MB
Datasheet
PIC16F87-Microchip.pdf
Description
Flash MCU
Note
This datasheet PDF includes multiple part numbers: PIC16F88, PIC16F87.
Please refer to the document for exact specifications by model.
