PL613-01 - 8-Output Clock

PL613-01 Description

PL613-01 1.8V to 3.3V, PicoPLL, 3-PLL, 200 MHz, 8 Output Clock IC .
The PL613-01 is an advanced triple PLL design based on Microchip’s PicoPLL™, th.

PL613-01 Features

* Designed for PCB Space Savings with Three Low-Power Programmable PLLs and up to 8 Clock Outputs
* Low Power Consumption - 10 µA Typical When PDB is Activated
* Output Frequency: - ≤110 MHz at 1.8V Operation - ≤166 MHz at 2.5V Operation - ≤200 MHz at 3.3V Operation

📥 Download Datasheet

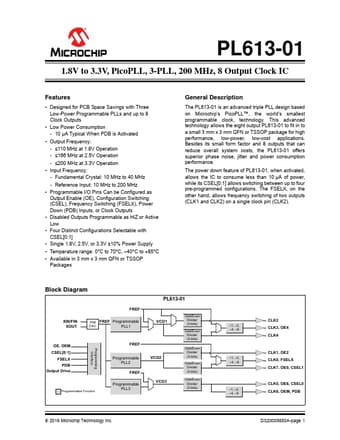

Preview of PL613-01 PDF
datasheet Preview Page 2 datasheet Preview Page 3
