PL611S-02 - Smallest Programmable Clock

Product Overview

Microchip

Datasheet Details

Part number	PL611S-02
Manufacturer	Microchip
File Size	257.92 KB
Description	Smallest Programmable Clock
Datasheet	PL611S-02 Datasheet

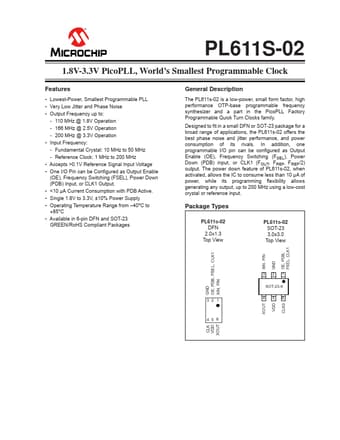

Additional preview pages of the PL611S-02 datasheet.

Product details

Description

The PL611s-02 is a low-power, small form factor, high performance OTP-base programmable frequency synthesizer and a part in the PicoPLL Factory Programmable Quick Turn Clocks family.

Features

Lowest-Power, Smallest Programmable PLL.
Very Low Jitter and Phase Noise.
Output Frequency up to: - 110 MHz @ 1.8V Operation - 166 MHz @ 2.5V Operation - 200 MHz @ 3.3V Operation.
Input Frequency: - Fundamental Crystal: 10 MHz to 50 MHz - Reference Clock: 1 MHz to 200 MHz.
Accepts >0.1V Reference Signal Input Voltage.
One I/O Pin can be Configured as Output Enable (OE), Frequency Switching (FSEL), Power Down (PDB) Input, or CLK1 Output.
