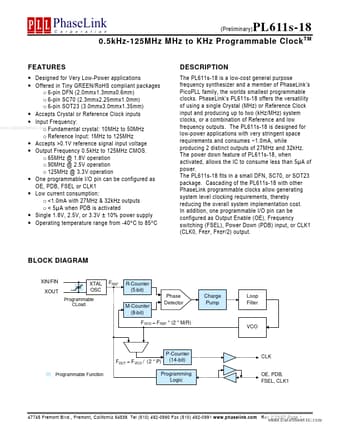

PL611S-18 PicoPLLTM KHz to MHz Programmable Clock

The PL611s-18 is a low-cost general purpose frequency synthesizer and a member of PhaseLink’s PicoPLL family, the worlds smallest programmable clocks. PhaseLink’s PL611s-18 offers the versatility of using a single Crystal (MHz) or Reference Clock input and producing up to two (kHz/MHz) system clocks.

PL611S-18 Features

* Designed for Very Low-Power applications

* Offered in Tiny GREEN/RoHS compliant packages o 6-pin DFN (2.0mmx1.3mmx0.6mm) o 6-pin SC70 (2.3mmx2.25mmx1.0mm) o 6-pin SOT23 (3.0mmx3.0mmx1.35mm)

* Accepts Crystal or Reference Clock inputs

* Input Frequency: www.DataSheet
