PL600-27T Datasheet - Micrel Semiconductor

Low Power 3 Output XO

PL600-27T General Description

The PL600-27T is a low cost XO IC, designed to replace multiple XO solutions saving the cost and board space of clock distribution buffers. In addition, it provides among the lowest current on the market for the 10MHz to 52MHz range. The PL600-27T accepts crystal and clock inputs from 10 to 52MHz (f.

PL600-27T Datasheet (312.16 KB)

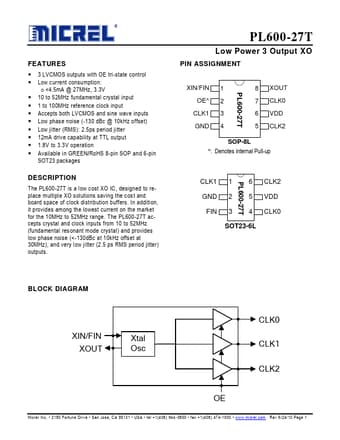

Preview of PL600-27T PDF

Datasheet Details

Part number:

PL600-27T

Manufacturer:

Micrel Semiconductor

File Size:

312.16 KB

Description:

Low power 3 output xo.
FE AT UR E S 3 LVCMOS outputs with OE tri-state control Low current consumption: o <4.5mA @ 27MHz, 3.3V 10 to 52MHz fundamental crys.
