PL602-37, PL602-35 750kHz - 800MHz Low Phase Noise Multiplier XO

Micrel

Description

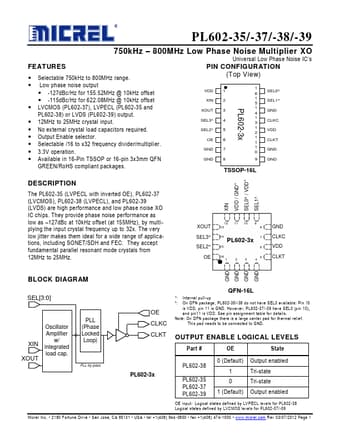

PL602-35/-37/-38/-39 750kHz * 800MHz Low Phase Noise Multiplier XO Universal Low Phase Noise IC’s FE AT UR E S PIN CONFIGURATION * Sel.
The PL602-35 (LVPECL with inverted OE), PL602-37 (LVCMOS), PL602-38 (LVPECL), and PL602-39 (LVDS) are high performance and low phase noise XO IC chips.

📥 Download Datasheet

PL602-37 Datasheet Preview — This datasheet PDF includes multiple part numbers: PL602-37, PL602-35. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: PL602-37, PL602-35
Manufacturer: Micrel
File Size: 410.58 KB
Datasheet: PL602-35-Micrel.pdf
Description: 750kHz - 800MHz Low Phase Noise Multiplier XO
Note: This datasheet PDF includes multiple part numbers: PL602-37, PL602-35.
Please refer to the document for exact specifications by model.

Features

* ase Noise IC’s PACKAGE INFORMATION (GREEN PACKAGE COMPLIANT) TSSOP-16L Symbol A A1 b C D E H L e Dimension in MM Min. Max. - 1.20 0.05 0.15 0.19 0.30 0.09 0.20 4.90 5.10 4.30 4.50 6.20 6.60 0.45 0.75 0.65 BSC EH D A1 eB C A L QFN-16L Symbol A A1 A3 b D E D1 E1 L e Dimensi
