PL602-38, PL602-35, 750kHz - 800MHz Low Phase Noise Multiplier XO

PL602-35/-37/-38/-39 750kHz * 800MHz Low Phase Noise Multiplier XO Universal Low Phase Noise IC’s FE AT UR E S PIN CONFIGURATION * Sel.
The PL602-35 (LVPECL with inverted OE), PL602-37 (LVCMOS), PL602-38 (LVPECL), and PL602-39 (LVDS) are high performance and low phase noise XO IC chips.

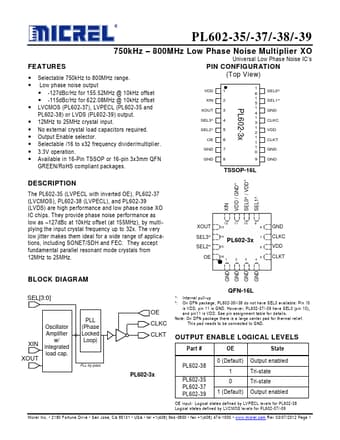

datasheet Preview Page 1 from Datasheet4u.com

PL602-35-Micrel.pdf

PL602-38 Datasheet Preview — This datasheet PDF includes multiple part numbers: PL602-38, PL602-35. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PL602-38, PL602-35

Manufacturer:

Micrel

File Size:

410.58 KB

Description:

750kHz - 800MHz Low Phase Noise Multiplier XO

Note:

This datasheet PDF includes multiple part numbers: PL602-38, PL602-35.
Please refer to the document for exact specifications by model.

Features

* ase Noise IC’s PACKAGE INFORMATION (GREEN PACKAGE COMPLIANT) TSSOP-16L Symbol A A1 b C D E H L e Dimension in MM Min. Max. - 1.20 0.05 0.15 0.19 0.30 0.09 0.20 4.90 5.10 4.30 4.50 6.20 6.60 0.45 0.75 0.65 BSC EH D A1 eB C A L QFN-16L Symbol A A1 A3 b D E D1 E1 L e Dimensi

Applications

* including SONET/SDH and FEC. They accept fundamental parallel resonant mode crystals from 12MHz to 25MHz. XOUT SEL3^ SEL2^ OE 12 13 11 10 9 8 14 PL602-3x 7 15 6 16 5 123 4 GND CLKC VDD CLKT GND GND GND GND BLOCK DIAGRAM SEL[3:0] XIN XOUT Oscillator Amplifier w/ integrated load cap. P
