PL611-01 - Programmable Quick Turn Clock

PL611-01 Description

PL611-01 Programmable Quick Turn Clock T M .
The PL611-01 is a low-cost general purpose frequency synthesizer and a member of PhaseLink’s Factory Programmable ‘Quick Turn Clock (QTC)’ family.

PL611-01 Features

* Advanced programmable PLL design Very low Jitter and Phase Noise (30-70ps Pk-Pk typical) Up to 3 programmable outputs Output frequency up to 200MHz CMOS. Accepts Crystal or reference clock inputs o Fundamental crystal: 10MHz-30MHz o 3 RD overtone crystal: Up to 75MHz o Reference input: Up to 200MHz

📥 Download Datasheet

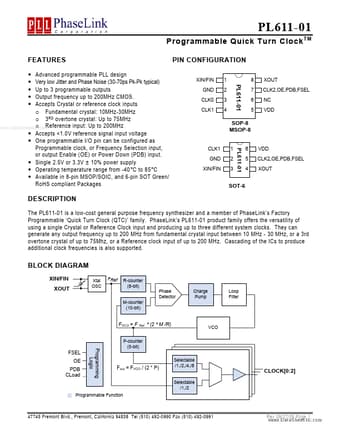

Preview of PL611-01 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
PL611-01
Manufacturer
PhaseLink Corporation
File Size
294.28 KB
Datasheet
PL611-01_PhaseLinkCorporation.pdf
Description
Programmable Quick Turn Clock
