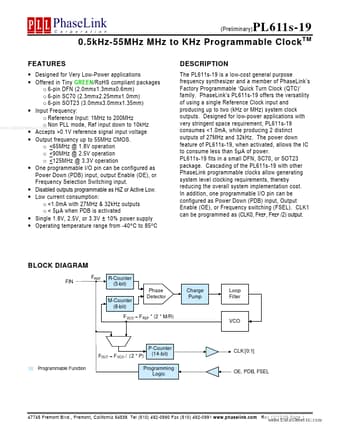

PL611S-19 PicoPLLTM KHz to MHz Programmable Clock

The PL611s-19 is a low-cost general purpose frequency synthesizer and a member of PhaseLink’s Factory Programmable ‘Quick Turn Clock (QTC)’ family. PhaseLink’s PL611s-19 offers the versatility of using a single Reference Clock input and producing up to two (kHz or MHz) system clock outputs. Designed.

PL611S-19 Features

* Designed for Very Low-Power applications

* Offered in Tiny GREEN /RoHS compliant packages o 6-pin DFN (2.0mmx1.3mmx0.6mm) o 6-pin SC70 (2.3mmx2.25mmx1.0mm) o 6-pin SOT23 (3.0mmx3.0mmx1.35mm)

* Input Frequency: o Reference Input: 1MHz to 200MHz o Non PLL mode, Ref input down
