SCH5127 - Super I/O

Datasheet Summary

Description

The SCH5127 is a 3.3V (Super I/O Block is 5V tolerant) PC99/PC2001 compliant Super I/O controller with an LPC interface.

Features

  • General Features - 3.3 Volt Operation (Most I/O Pins are 5 Volt Tolerant) - LPC Interface - PC99, PC2001 Compliant - ACPI 2.0 Compliant - Multiplexed Command, Address and Data Bus - Serial IRQ Interface Compatible with Serial- ized IRQ Support for PCI Systems - PME Interface - ISA Plug-and-Play Compatible Register Set - Programmable Wake-up Event (PME) Inter- face - System Management Interrupt (SMI) - 30 General Purpose Input/Output Pins.
  • AC Power Failure Recovery.
  • Wa.

📥 Download Datasheet

Datasheet preview – SCH5127

Datasheet Details

Part number SCH5127
Manufacturer Microchip
File Size 110.98 KB
Description Super I/O
Datasheet download datasheet SCH5127 Datasheet
Additional preview pages of the SCH5127 datasheet.

📁 Similar Datasheet

  • SCH5000 - (SCHxxxx) STANDARD RECOVERY HIGH VOLTAGE RECTIFIER ASSEMBLY (Semtech Corporation)
  • SCH5017 - Super I/O (SMSC Corporation)
  • SCH5027E - Super I/O (SMSC)
  • SCH5617 - Desktop System Controller Hub (SMSC Corporation)
  • SCH-850 - DUAL MODE(CDMA+AMPS) PORTABLE TELEPHONE SERVICE MANUAL (Samsung)
  • SCH-8500 - DUAL BAND(PCS+AMPS) PORTABLE TELEPHONE (Samsung)
  • SCH10000 - (SCHxxxx) STANDARD RECOVERY HIGH VOLTAGE RECTIFIER ASSEMBLY (Semtech Corporation)
  • SCH12500 - (SCHxxxx) STANDARD RECOVERY HIGH VOLTAGE RECTIFIER ASSEMBLY (Semtech Corporation)
  • SCH1301 - P-Channel Silicon MOSFET (Sanyo)
  • SCH1302 - Ultrahigh-Speed Switching Applications (Sanyo Semicon Device)
Other Datasheets by Microchip

Full PDF Text Transcription

Click to expand full text

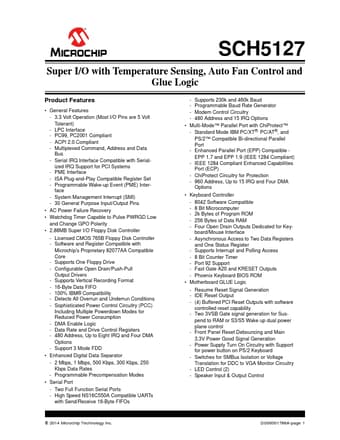

SCH5127 Super I/O with Temperature Sensing, Auto Fan Control and Glue Logic Product Features • General Features - 3.3 Volt Operation (Most I/O Pins are 5 Volt Tolerant) - LPC Interface - PC99, PC2001 Compliant - ACPI 2.0 Compliant - Multiplexed Command, Address and Data Bus - Serial IRQ Interface Compatible with Serial- ized IRQ Support for PCI Systems - PME Interface - ISA Plug-and-Play Compatible Register Set - Programmable Wake-up Event (PME) Inter- face - System Management Interrupt (SMI) - 30 General Purpose Input/Output Pins • AC Power Failure Recovery • Watchdog Timer Capable to Pulse PWRGD Low and Change GPO Polarity • 2.
