SCH5636 Datasheet - Microchip

SCH5636 Desktop Embedded Controller

SCH5636 Desktop Embedded Controller with Fan Control, Hardware Monitoring and PECI Highlights High Performance 32-bit ARC-625D Embedded Controller (EC) - 96KB Closely Coupled Instruction ROM - 16 KB Single Cycle 32-bit Wide Dual-ported SRAM, Accessible as Closely Coupled Data Memory and Instruction Memory - 32 x 32 → 64 Multiply - Maskable Interrupt Aggregator Interface - Maskable Hardware Wake-Up Events - Idle and Sleep modes - JTAG Debug Port - MCU Serial Debug Port - 5-Channel DMA .

SCH5636-Microchip.pdf

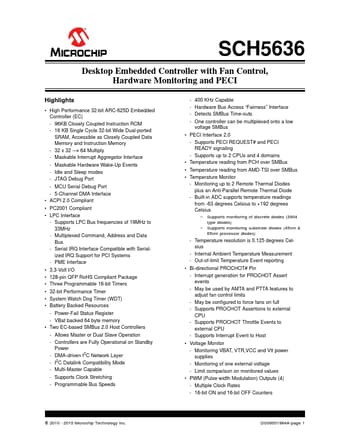

Preview of SCH5636 PDF
SCH5636 Datasheet Preview Page 2 SCH5636 Datasheet Preview Page 3

Datasheet Details

Part number:

SCH5636

Manufacturer:

Microchip ↗

File Size:

2.08 MB

Description:

Desktop embedded controller.
