TP2535

P-Channel Vertical DMOS FETs

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor Conductive Containers Inc TP2535 TACKI PAK 3 1/2 X 2 9/16 X 1/2" DigiKey 73 1000 units
$7.5

TP2535 Datasheet (308.21 KB)

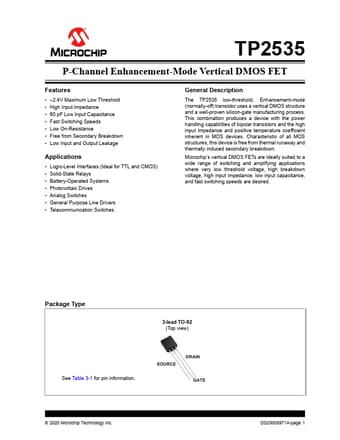

Preview of TP2535 PDF Datasheet

Datasheet Details

Part number:

TP2535

Manufacturer:

Microchip ↗

File Size:

308.21 KB

Description:

P-channel vertical dmos fets

TP2535 Features

* 2.4V Maximum Low Threshold

* High Input Impedance

* 60 pF Low Input Capacitance

* Fast Switching Speeds

* Low On-Resistance

* Free from Secondary Breakdown

* Low Input and Output Leakage Applications

* Logic-Level Interfaces

TP2535 General Description

The TP2535 low-threshold, Enhancement-mode (normally-off) transistor uses a vertical DMOS structure and a well-proven silicon-gate manufacturing process. This combination produces a device with the power handling capabilities of bipolar transistors and the high input impedance and positive temperatu.
