TP250A - Current Transducers

Product Overview

Topstek

📥 Download Datasheet

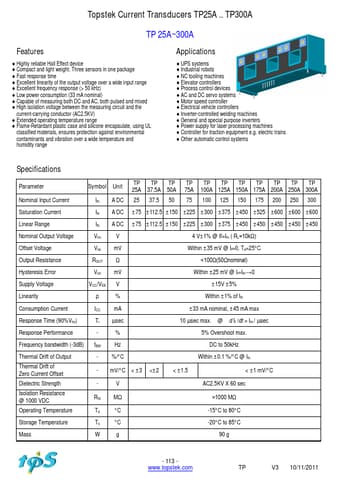

TP250A Current Transducers by Topstek - Datasheet Preview — Datasheet preview – TP250A

Datasheet Details

Part number	TP250A
Manufacturer	Topstek
File Size	304.45 KB
Description	Current Transducers
Datasheet	TP250A Datasheet
Note	This datasheet PDF includes multiple part numbers: TP250A, TP25A. Please refer to the document for exact specifications by model.
Additional preview pages of the TP250A datasheet.

Product details

Features

Highly reliable Hall Effect device.
Compact and light weight. Three sensors in one package.
Fast response time.
Excellent linearity of the output voltage over a wide input range.
Excellent frequency response (> 50 kHz).
Low power consumption (33 mA nominal).
Capable of measuring both DC and AC, both pulsed and mixed.
High isolation voltage between the measuring circuit and the current-carrying conductor (AC2.5KV).
