USB4715 Datasheet - Microchip

USB4715 USB 2.0 Hi-Speed Hub Controller

USB4715 USB 2.0 Hi-Speed Hub Controller with FlexConnect on all Ports Highlights Single-chip USB 2.0 Hi-Speed hub controller with FlexConnect - 1 upstream port for USB Host / OTG connection - 4 downstream ports with FlexConnect capability on all ports USB Battery Charging, revision 1.2, support on downstream ports (DCP, CDP, SDP) Battery charging support for China and Apple® profiles USB to SMBus, I2S™, SPI, UART, and GPIO - Apple authentication support .

USB4715 Features

* FlexConnect - Downstream port able to swap with upstream port, allowing USB host capable devices to control other devices on the hub

* MultiTRAK™ - Dedicated Transaction Translator per port

* PortMap - Configurable port mapping and disable sequencing

* PortSwap - Co

USB4715-Microchip.pdf

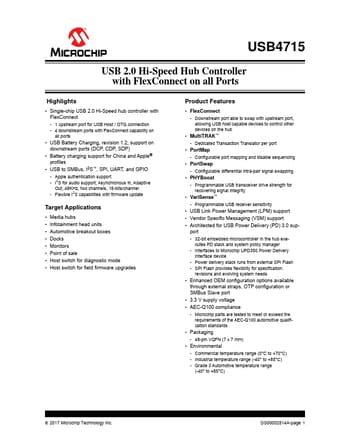

Preview of USB4715 PDF
USB4715 Datasheet Preview Page 2 USB4715 Datasheet Preview Page 3

Datasheet Details

Part number:

USB4715

Manufacturer:

Microchip ↗

File Size:

0.98 MB

Description:

Usb 2.0 hi-speed hub controller.
