USB4S012 - 4-CHANNEL ESD SOLUTION

USB4S012 Description

UNISONIC TECHNOLOGIES CO., LTD USB4S012 Preliminary TVS 4-CHANNEL ESD SOLUTION FOR USB-HS/USB OTG/USB CHARGER INTERFACE * .
The U TC USB4S012 is a fo ur-channel ele ctrostatic disch arge (ESD) solution for USB charger or USB on-the-g o (OTG) interface.

USB4S012 Features

* USB Signal Pins (D+, D
* , ID)
* 0.8-pF Line Capacitance
* Tolerates 6V Signal
* VBUS Line (VBUS)
* 11-pF Line Capacitance
* Tolerates 20V Signal
* Flow-Through Pin Mapping for the High-Speed Lines Ensures Zero Additional Skew Due to Board Layout W

USB4S012 Applications

* the USB co nnector is the de facto communication port for external commu nications lik e hig h-speed data transfer, audio signal, charging, car-kit, etc. In order to support different interfaces, the USB port needs to handle different voltage levels. F or e xample, some chargers requ ire the V BUS

📥 Download Datasheet

Preview of USB4S012 PDF

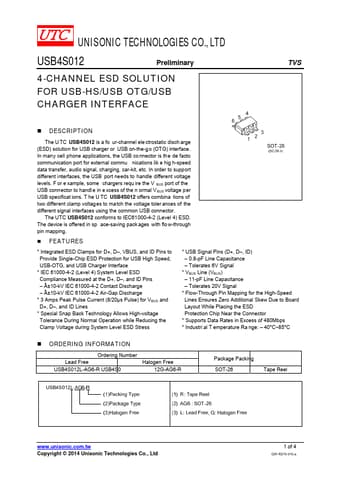

datasheet Preview Page 2 datasheet Preview Page 3
