dsPIC33CH128MP206 Datasheet - Microchip

dsPIC33CH128MP206 16-Bit Digital Signal Controllers

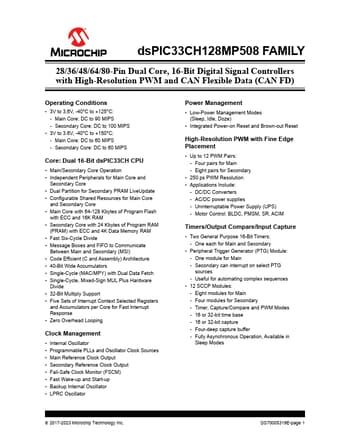

dsPIC33CH128MP508 FAMILY 28/36/48/64/80-Pin Dual Core, 16-Bit Digital Signal Controllers with High-Resolution PWM and CAN Flexible Data (CAN FD) Operating Conditions 3V to 3.6V, -40°C to +125°C: - Main Core: DC to 90 MIPS - Secondary Core: DC to 100 MIPS 3V to 3.6V, -40°C to +150°C: - Main Core: DC to 60 MIPS - Secondary Core: DC to 60 MIPS Core: Dual 16-Bit dsPIC33CH CPU Main/Secondary Core Operation Independent Peripherals for Main Core and Secondary Co.

dsPIC33CH128MP206 Features

* Four ADC Modules: - One module for Main core - Three modules for Secondary core - 12-bit, 3.5 Msps ADC - Up to 18 conversion channels

* Four DAC/Analog Comparator Modules: - One module for Main core - Three modules for Secondary core - 12-bit DACs with hardware slope compensation -

dsPIC33CH128MP206 Datasheet (4.73 MB)
