dsPIC33CH128MP208 Product details

Four ADC Modules: - One module for Main core - Three modules for Secondary core - 12-bit, 3.5 Msps ADC - Up to 18 conversion channels.
Four DAC/Analog Comparator Modules: - One module for Main core - Three modules for Secondary core - 12-bit DACs with hardware slope compensation - 15 ns analog comparators.
Three PGA Modules: - Three modules for Secondary core - Can be read by Host ADC - Option to interface with Host ADC.
Shared DAC/Analog Output: - DAC/analog.

Part number: dsPIC33CH128MP208, dsPIC33CH128MP508
Manufacturer: Microchip ↗
File Size: 4.73 MB

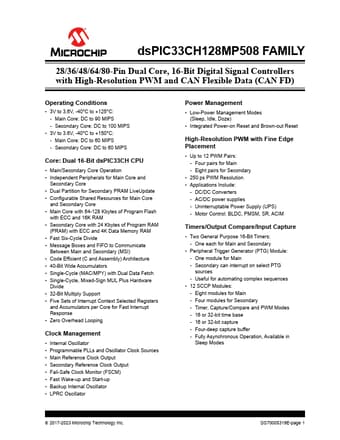

Datasheet: dsPIC33CH128MP508-Microchip.pdf
Description: 16-Bit Digital Signal Controllers
Note: This datasheet PDF includes multiple part numbers: dsPIC33CH128MP208, dsPIC33CH128MP508.
Please refer to the document for exact specifications by model.
