dsPIC33EP512GM306, dsPIC33EP128GM304 16-Bit Digital Signal Controllers

dsPIC33EP512GM306 Description

dsPIC33EPXXXGM3XX/6XX/7XX 16-Bit Digital Signal Controllers with High-Speed PWM, Op Amps and Advanced Analog .

dsPIC33EP512GM306 Features

* Operating Conditions
* 3.0V to 3.6V, -40°C to +85°C, up to 70 MIPS
* 3.0V to 3.6V, -40°C to +125°C, up to 60 MIPS Core: 16-Bit dsPIC33E CPU
* Code-Efficient (C and Assembly) Architecture
* Two 40-Bit Wide Accumulators
* Single-Cycle (MAC/MPY) with Dual Data F

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: dsPIC33EP512GM306, dsPIC33EP128GM304. Please refer to the document for exact specifications by model.

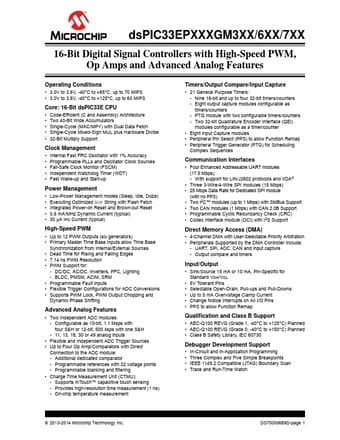

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
dsPIC33EP512GM306, dsPIC33EP128GM304
Manufacturer
Microchip ↗
File Size
4.27 MB
Datasheet
dsPIC33EP128GM304-Microchip.pdf
Description
16-Bit Digital Signal Controllers
Note
This datasheet PDF includes multiple part numbers: dsPIC33EP512GM306, dsPIC33EP128GM304.
Please refer to the document for exact specifications by model.
