dsPIC33EP512GP502 - 16-Bit Microcontrollers and Digital Signal Controllers

Product Overview

Microchip

Part number	dsPIC33EP512GP502
Manufacturer	Microchip
File Size	4.38 MB
Description	16-Bit Microcontrollers and Digital Signal Controllers
Datasheet	dsPIC33EP512GP502 Datasheet
Note	This datasheet PDF includes multiple part numbers: dsPIC33EP512GP502, dsPIC33EP32GP502. Please refer to the document for exact specifications by model.

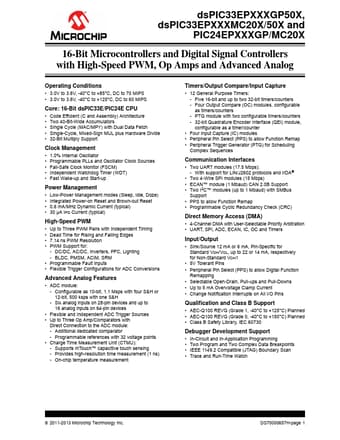

Additional preview pages of the dsPIC33EP512GP502 datasheet.

ADC module: - Configurable as 10-bit, 1.1 Msps with four S&H or 12-bit, 500 ksps with one S&H - Six analog inputs on 28-pin devices and up to 16 analog inputs on 64-pin devices.
Flexible and Independent ADC Trigger Sources.
Up to Three Op Amp/Comparators with Direct Connection to the ADC module: - Additional dedicated comparator - Programmable references with 32 voltage points.
Charge Time Measurement Unit (CTMU): - Supports mTouch™ capacitive touch sensing -.
