dsPIC33EP512GP506 16-Bit Microcontrollers and Digital Signal Controllers

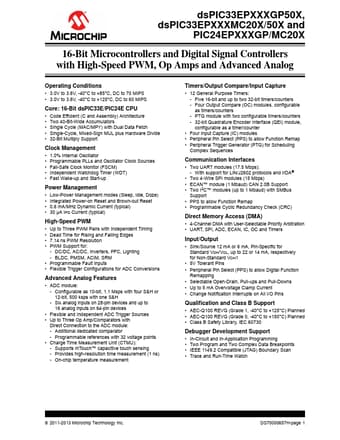

dsPIC33EPXXXGP50X, dsPIC33EPXXXMC20X/50X and PIC24EPXXXGP/MC20X 16-Bit Microcontrollers and Digital Signal Controllers with High-Speed PWM, Op Amps and Advanced Analog Operating Conditions 3.0V to 3.6V, -40°C to +85°C, DC to 70 MIPS 3.0V to 3.6V, -40°C to +125°C, DC to 60 MIPS Core: 16-Bit dsPIC33E/PIC24E CPU Code Efficient (C and Assembly) Architecture Two 40-Bit-Wide Accumulators Single Cycle (MAC/MPY) with Dual Data Fetch Single-Cyc.

dsPIC33EP512GP506 Features

* ADC module: - Configurable as 10-bit, 1.1 Msps with four S&H or 12-bit, 500 ksps with one S&H - Six analog inputs on 28-pin devices and up to 16 analog inputs on 64-pin devices

* Flexible and Independent ADC Trigger Sources

* Up to Three Op Amp/Comparators with Direct Conne

dsPIC33EP512GP506 Datasheet (4.38 MB)
