dsPIC33FJ256GP510A Datasheet - Microchip

dsPIC33FJ256GP510A 16-bit Digital Signal Controllers

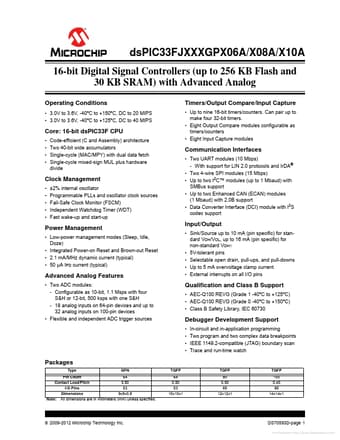

dsPIC33FJXXXGPX06A/X08A/X10A 16-bit Digital Signal Controllers (up to 256 KB Flash and 30 KB SRAM) with Advanced Analog Operating Conditions 3.0V to 3.6V, -40ºC to +150ºC, DC to 20 MIPS 3.0V to 3.6V, -40ºC to +125ºC, DC to 40 MIPS Timers/Output Compare/Input Capture Up to nine 16-bit timers/counters. Can pair up to make four 32-bit timers. Eight Output Compare modules configurable as timers/counters Eight Input Capture modules Core: 16-bit dsPI.

dsPIC33FJ256GP510A Features

* Two ADC modules: - Configurable as 10-bit, 1.1 Msps with four S&H or 12-bit, 500 ksps with one S&H - 18 analog inputs on 64-pin devices and up to 32 analog inputs on 100-pin devices

* Flexible and independent ADC trigger sources Qualification and Class B Support

* AEC-Q100

dsPIC33FJ256GP510A Datasheet (5.46 MB)
