dsPIC33FJ256MC510A Datasheet 16-bit Digital Signal Controllers

Manufacturer: Microchip Technology

Download the dsPIC33FJ256MC510A datasheet PDF. This datasheet also includes the dsPIC33FJ64MC506A variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (dsPIC33FJ64MC506A-Microchip.pdf) that lists specifications for multiple related part numbers.

Overview

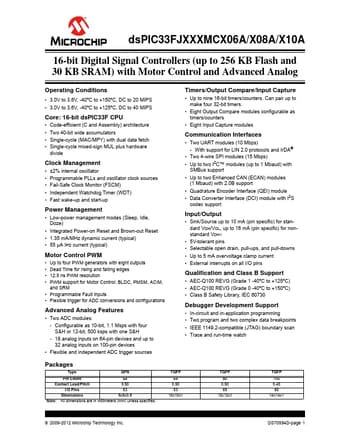

dsPIC33FJXXXMCX06A/X08A/X10A 16-bit Digital Signal Controllers (up to 256 KB Flash and 30 KB SRAM) with Motor Control and Advanced Analog Operating Conditions • 3.0V to 3.6V, -40ºC to +150ºC, DC to 20 MIPS • 3.0V to 3.6V, -40ºC to +125ºC, DC to 40 MIPS Core: 16-bit dsPIC33F CPU • Code-efficient (C and Assembly) architecture • Two 40-bit wide accumulators • Single-cycle (MAC/MPY) with dual data fetch • Single-cycle mixed-sign MUL plus hardware divide Clock Management • ±2% internal oscillator • Programmable PLLs and oscillator clock sources • Fail-Safe Clock Monitor (FSCM) • Independent Watchdog Timer (WDT) • Fast wake-up and start-up Power Management • Low-power management modes (Sleep, Idle, Doze) • Integrated Power-on Reset and Brown-out Reset • 1.35 mA/MHz dynamic current (typical) • 55 μA IPD current (typical) Motor Control PWM • Up to four PWM generators with eight outputs • Dead Time for rising and falling edges • 12.

Key Features

  • Two ADC modules: - Configurable as 10-bit, 1.1 Msps with four S&H or 12-bit, 500 ksps with one S&H - 18 analog inputs on 64-pin devices and up to 32 analog inputs on 100-pin devices.
  • Flexible and independent ADC trigger sources Timers/Output Compare/Input Capture.
  • Up to nine 16-bit timers/counters. Can pair up to make four 32-bit timers.
  • Eight Output Compare modules configurable as timers/counters.
  • Eight Input Capture modules Communication Interfac.
