MT42L128M32D1 - Mobile LPDDR2 SDRAM

Product Overview

Micron Technology

📥 Download Datasheet

MT42L128M32D1 Mobile LPDDR2 SDRAM by Micron Technology - Datasheet Preview — Datasheet preview – MT42L128M32D1

Datasheet Details

Part number	MT42L128M32D1
Manufacturer	Micron Technology
File Size	2.04 MB
Description	Mobile LPDDR2 SDRAM
Datasheet	MT42L128M32D1 Datasheet
Note	This datasheet PDF includes multiple part numbers: MT42L128M32D1, MT42L256M16D1. Please refer to the document for exact specifications by model.

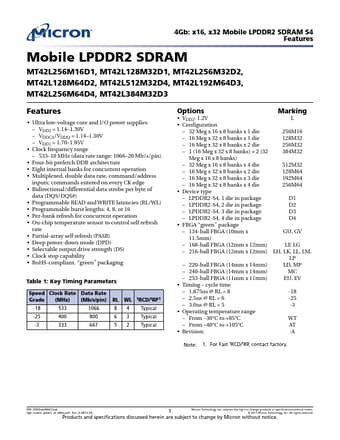

Additional preview pages of the MT42L128M32D1 datasheet.

Product details

Features

Mobile LPDDR2 SDRAM MT42L256M16D1, MT42L128M32D1, MT42L256M32D2, MT42L128M64D2, MT42L512M32D4, MT42L192M64D3, MT42L256M64D4, MT42L384M32D3 Features.
Ultra low-voltage core and I/O power supplies.
VDD2 = 1.14.
1.30V.
VDDCA/VDDQ = 1.14.
1.30V.
VDD1 = 1.70.
1.95V.
Clock frequency range.
533.
10 MHz (data rate range: 1066.
20 Mb/s/pin).
Four-bit prefetch DDR architecture.
Eight internal banks.
