MT42L192M32D3, MT42L128M16D1 - Mobile LPDDR2 SDRAM

Micron Technology

Datasheet Details

Part number	MT42L192M32D3, MT42L128M16D1
Manufacturer	Micron Technology
File Size	1.92 MB
Description	Mobile LPDDR2 SDRAM
Datasheet	MT42L128M16D1-MicronTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: MT42L192M32D3, MT42L128M16D1. Please refer to the document for exact specifications by model.

of signal connections and die configurations for each respective architecture. Rev.

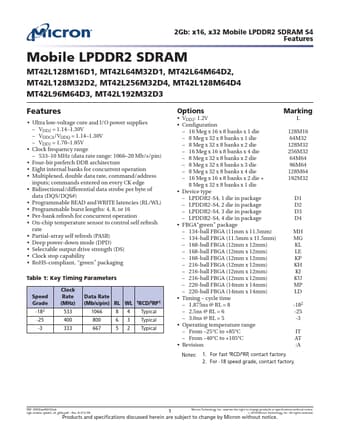

Mobile LPDDR2 SDRAM MT42L128M16D1, MT42L64M32D1, MT42L64M64D2, MT42L128M32D2, MT42L256M32D4, MT42L128M64D4 MT42L96M64D3, MT42L192M32D3 Features.
Ultra low-voltage core and I/O power supplies.
VDD2 = 1.14.
1.30V.
VDDCA/VDDQ = 1.14.
1.30V.
VDD1 = 1.70.
1.95V.
Clock frequency range.
533.
10 MHz (data rate range: 1066.
20 Mb/s/pin).
Four-bit prefetch DDR architecture.
Eight internal banks for.
