MT40A2G4 - DDR4 SDRAM

Product Overview

Micron

📥 Download Datasheet

MT40A2G4 DDR4 SDRAM by Micron - Datasheet Preview — Datasheet preview – MT40A2G4

Datasheet Details

Part number	MT40A2G4
Manufacturer	Micron
File Size	11.91 MB
Description	DDR4 SDRAM
Datasheet	MT40A2G4 Datasheet

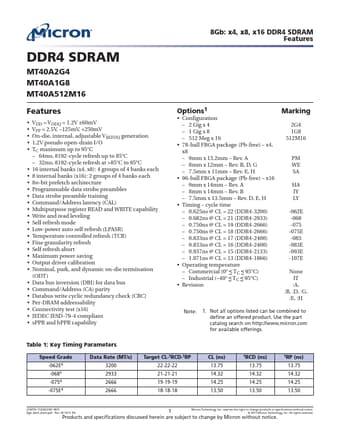

Additional preview pages of the MT40A2G4 datasheet.

Product details

Features

DDR4 SDRAM MT40A2G4 MT40A1G8 MT40A512M16 Features.
VDD = VDDQ = 1.2V ±60mV.
VPP = 2.5V,.
125mV, +250mV.
On-die, internal, adjustable VREFDQ generation.
1.2V pseudo open-drain I/O.
TC maximum up to 95°C.
64ms, 8192-cycle refresh up to 85°C.
32ms, 8192-cycle refresh at >85°C to 95°C.
16 internal banks (x4, x8): 4 groups of 4 banks each.
8 internal banks (x16): 2 groups of 4 banks each.
8n-bit prefet.
