ME4054B-N 500mA Lithium Ion Battery Linear Charger

ME4054B-N Description

ME4054B-N 500mA Lithium Ion Battery Linear Charger ME4054B-N General .
ME4054B-N is a complete constant-current/ constant voltage linear charger for single cell lithium-ion batteries.

ME4054B-N Features

* include charge current monitor, under voltage lockout, automatic recharge and a status. Features
* programmable charge current：20-500mA
* charge termination：3C/10 charge termination
* No MOSFET sense resistor or blocking diode required
* Complete Linear Charger in ThinSOT Package fo

ME4054B-N Applications

* Package
* 5-pin SOT23-5 V01 www. microne. com. cn Page 1 of 16 Typical Application Circuit 500mA Single Cell Li-Ion Charger VIN 4.5V -6.5V ME4054B-N 1K Vcc BAT 500mA 1uF LED ME4054B-N CHRG PROG GND 2K 4.2V Li-ion Battery Selection Guide ME 40 54 X X G-N New Version Environment mark

📥 Download Datasheet

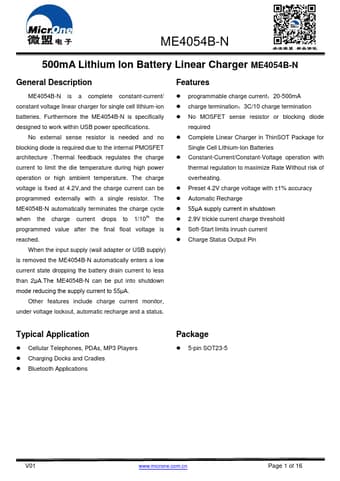

Preview of ME4054B-N PDF
