ME4057

1A Lithium Ion Battery Linear Charger

ME4057 Features

* include Battery temperature monitor, under-voltage lockout, automatic recharge and two status pins to indicate charge and charge termination. Features

* Protection of battery cell reverse connection

* Programmable charge current up to 1A

* No MOSFET sense resistor or blocking diode requ

ME4057 General Description

ME4057 is a complete constant-current/constant voltage linear charger for single cell lithium-ion batteries. With a thermally enhanced 8-PIN SOP package on the bottom and low external component count make the ME4057 ideally suited for portable applications. Furthermore the ME4057 is specifically des.

ME4057 Datasheet (353.74 KB)

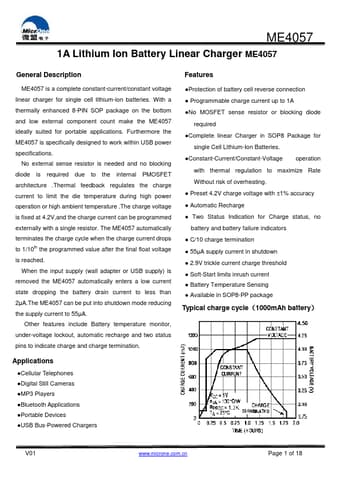

Preview of ME4057 PDF

Datasheet Details

Part number:

ME4057

Manufacturer:

Microne

File Size:

353.74 KB

Description:

1a lithium ion battery linear charger.
