ME4086, 24V Input Voltage Switch Mode Battery Charger

ME4086 24V Input Voltage Switch Mode Battery Charger ME4086 General .
The ME4086 is a complete battery charger controller for one (4.

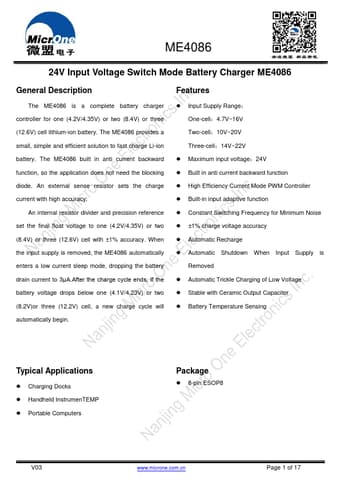

datasheet Preview Page 1 from Datasheet4u.com

ME4086-Microne.pdf

ME4086 Datasheet Preview — Preview of ME4086 PDF

Datasheet Details

Part number:

ME4086

Manufacturer:

Microne

File Size:

1.06 MB

Description:

24V Input Voltage Switch Mode Battery Charger

Features

* Input Supply Range： One-cell：4.7V~16V Two-cell：10V~20V Three-cell：14V~22V
* Maximum input voltage：24V
* Built in anti current backward function
* High Efficiency Current Mode PWM Controller
* Built-in input adaptive function
* Constant Switching Frequency for Minimum Noise

Applications

* Charging Docks
* Handheld InstrumenTEMP
* Portable Computers Package
* 8-pin ESOP8 V03 www. microne. com. cn Page 1 of 17 ME4086 Typical Application Circuit VIN C1 100uF ME4086A/B 1 SEN TEMP 8 Thermal 2 BAT PAD CHRG 7 R4 100K 3 EN Pin9 GND SW 6 C2 C2 22uF 1nF 4 IN BS
