ME8105 Datasheet Pwm Controller Of High-performance Current Mode

Manufacturer: Microne

Overview: ME8105 PWM Controller of High-performance Current Mode ME8105.

Datasheet Details

Part number	ME8105
Manufacturer	Microne
File Size	873.45 KB
Description	PWM Controller of High-performance Current Mode
Datasheet	ME8105-Microne.pdf

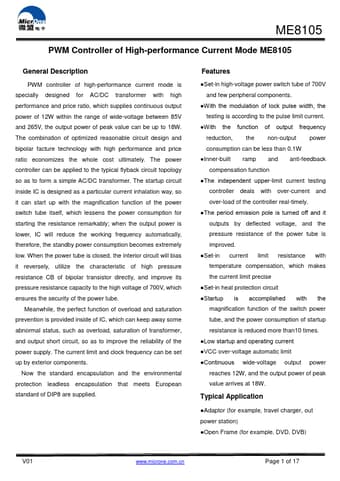

General Description

PWM controller of high-performance current mode is specially designed for AC/DC transformer with high performance and price ratio, which supplies continuous output power of 12W within the range of wide-voltage between 85V and 265V, the output power of peak value can be up to 18W.

The combination of optimized reasonable circuit design and bipolar facture technology with high performance and price ratio economizes the whole cost ultimately.

The power controller can be applied to the typical flyback circuit topology so as to form a simple AC/DC transformer.

Key Features

Set-in high-voltage power switch tube of 700V and few peripheral components.
With the modulation of lock pulse width, the testing is according to the pulse limit current.
With the function of output frequency reduction, the non-output power consumption can be less than 0.1W.
Inner-built ramp and anti-feedback compensation function.
The independent upper-limit current testing controller deals with over-current and over-load of the controller real-timely.
The period emi.
