4N47BU Datasheet, Optocouplers, Micropac Industries

4N47BU Features

  • Optocouplers
  • Certified to MIL-PRF-19500/548
  • High reliability
  • Base lead provided for conventional transistor biasing
  • High blocking voltage transistor

PDF File Details

Part number:

4N47BU

Manufacturer:

Micropac Industries

File Size:

49.26kb

Download:

📄 Datasheet

Description:

Optocouplers. Very high gain optocoupler utilizing GaAIAs infrared LED optically coupled to an N-P-N silicon phototransistor packaged in a hermetic

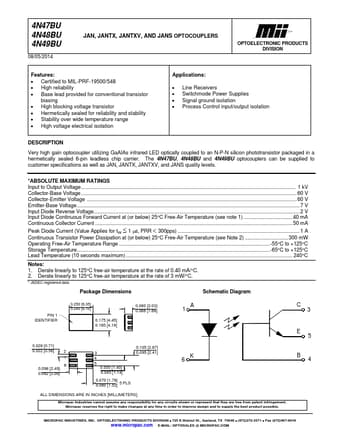

Datasheet Preview: 4N47BU 📥 Download PDF (49.26kb)
Page 2 of 4N47BU

4N47BU Application

  • Applications
  • Line Receivers
  • Switchmode Power Supplies
  • Signal ground isolation
  • Process Control input/output
