66116 Datasheet - Micropac Industries

Single Channel Optocoupler Electrically Similar to 4N47-4N49 Coaxial or Bulkhead Mount packages

66116 Features

* High reliability Base lead provided for conventional transistor biasing Very high gain, high voltage transistor Hermetically sealed for reliability and stability Stability over wide temperature range High voltage electrical isolation Appl

66116 General Description

Very high gain optocoupler utilizing GaAIAs infrared LED optically coupled to an N-P-N silicon phototransistor packaged in a hermetically sealed metal case. These devices can be tested to customer specifications, as well as to MIL-PRF-38534 H&K quality levels. *ABSOLUTE MAXIMUM RATINGS Input to.

66116 Datasheet (87.76 KB)

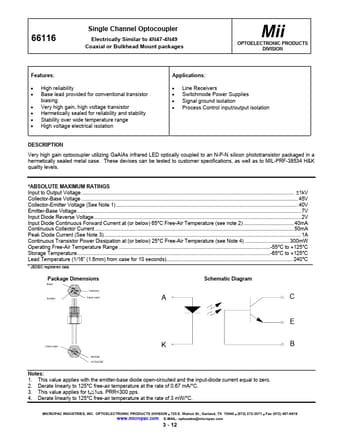

Preview of 66116 PDF

Datasheet Details

Part number:

66116

Manufacturer:

Micropac Industries

File Size:

87.76 KB

Description:

Single channel optocoupler electrically similar to 4n47-4n49 coaxial or bulkhead mount packages.
