66126

SINGLE/DUAL CHANNEL/ HERMETICALLY SEALED OPTOCOUPLER/ SIMILAR TO 4N55

66126 Features

* DSCC Approved 8767902PX (Dual) and 9085401HPX (Single) 1500 Vdc isolation test voltage TTL and CMOS compatible 2 MHz bandwidth typical Faraday shield to provide high common mode rejection Applications:

* Milita

66126 General Description

The 66126 single/dual channel optocouplers utilize infrared LEDs optically coupled to high gain photon detectors. These unique optocouplers provide high switching speeds while providing high isolation (1500Vmin) over the full military temperature range (-55° to +125°C). The 66126 is available in sta.

66126 Datasheet (87.91 KB)

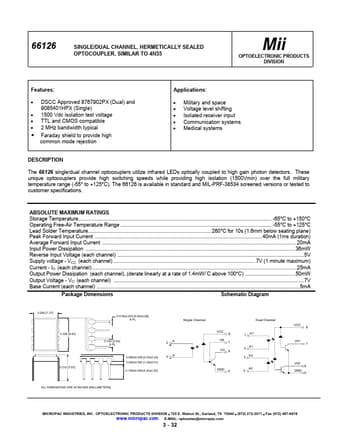

Preview of 66126 PDF

Datasheet Details

Part number:

66126

Manufacturer:

Micropac Industries

File Size:

87.91 KB

Description:

Single/dual channel/ hermetically sealed optocoupler/ similar to 4n55.
