66156 Datasheet - Micropac Industries

SINGLE CHANNEL OPTOCOUPLER PHOTODIODE OUTPUT COAXIAL OR BULKHEAD MOUNT PACKAGES

66156 Features

* High Reliability Bulkhead or Press fit version Rugged package Stabile over wide temperature +1.0kIV electrical isolation Applications:

* Analog isolation Secure telecom Line receiver Medical Monitor m

66156 General Description

The 66156 contains a Gallium Aluminum Arsenide (GaAIAs) infrared LED optically coupled to a silicon photodiode. This 66156-20X is a hermetically sealed package which is threaded in order to provide convenient bulkhead mounting and is available in standard and screened versions or tested to customer .

66156 Datasheet (81.46 KB)

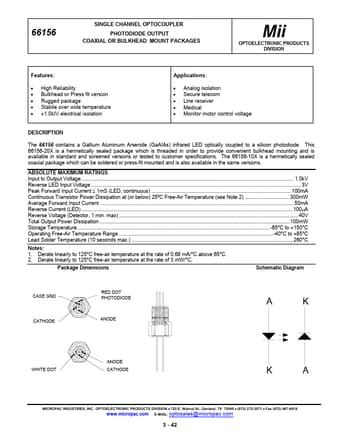

Preview of 66156 PDF

Datasheet Details

Part number:

66156

Manufacturer:

Micropac Industries

File Size:

81.46 KB

Description:

Single channel optocoupler photodiode output coaxial or bulkhead mount packages.
