2N3767 NPN POWER SILICON TRANSISTOR

TECHNICAL DATA NPN POWER SILICON TRANSISTOR Qualified per MIL-PRF-19500/518 Devices 2N3766 2N3767 Qualified Level JAN JANTX JANTXV MAXIMUM RATINGS Ratings Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Base Current Collector Current Total Power Dissipation @ TC = +250C (1) Operating & Storage Temperature Range Symbol VCEO VCBO VEBO IB IC PT Top, Tstg 2N3766 60 80 6.0 2.0 4.0 25 2N3767 80 100 Units Vdc Vdc Vdc Adc Adc W 0 -65 to +200 Max. 7.0 C THERMAL CHARACTERISTI.

2N3767_MicrosemiCorporation.pdf

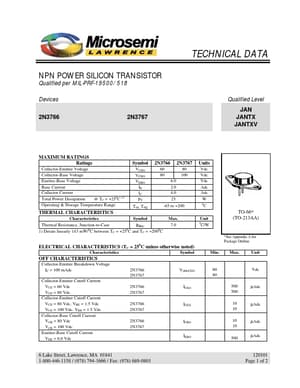

Preview of 2N3767 PDF
2N3767 Datasheet Preview Page 2 2N3767 Datasheet Preview Page 3

Datasheet Details

Part number:

2N3767

Manufacturer:

Microsemi ↗ Corporation

File Size:

53.76 KB

Description:

Npn power silicon transistor.
