APT7F100B, N-Channel FREDFET

N-Channel FREDFET POWER MOS 8® is a high speed, high voltage N-channel switch-mode power MOSFET.This 'FREDFET' version has a drain-source (.

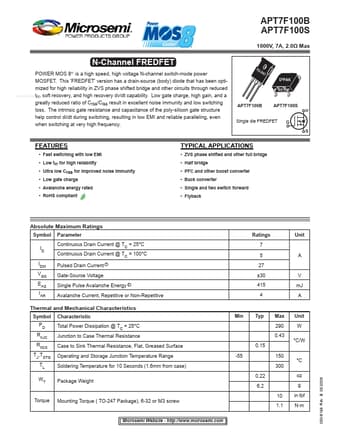

datasheet Preview Page 1 from Datasheet4u.com

APT7F100B_MicrosemiCorporation.pdf

APT7F100B Datasheet Preview — Preview of APT7F100B PDF

Datasheet Details

Part number:

APT7F100B

Manufacturer:

Microsemi ↗ Corporation

File Size:

517.86 KB

Description:

N-Channel FREDFET

Features

* Fast switching with low EMI
* Low trr for high reliability
* Ultra low Crss for improved noise immunity
* Low gate charge
* Avalanche energy rated

Applications

* ZVS phase shifted and other full bridge
* Half bridge
* PFC and other boost converter
* Buck converter
* Single and two switch forward
* Flyback Absolute Maximum Ratings Symbol ID IDM VGS EAS IAR Parameter Continuous Drain Current @ TC =
