APT7F80K Datasheet - Microsemi Corporation

APT7F80K - N-Channel FREDFET

APT7F80K 800V, 7A, 1.50Ω MAX,TRR ≤ 160nS N-Channel FREDFET Power MOS 8™ is a high speed, high voltage N-channel switch-mode power MOSFET.

This 'FREDFET' version has a drain-source (body) diode that has been optimized for high reliability in ZVS phase shifted bridge and other circuits through reduced trr, soft recovery, and high recovery dv/dt capability.

Low gate charge, high gain, and a greatly reduced ratio of Crss/Ciss result in excellent noise immunity and low switching loss.

The intr

APT7F80K Features

* Fast switching with low EMI

* Low trr for high reliability

* Ultra low Crss for improved noise immunity

* Low gate charge

* Avalanche energy rated

* RoHS compliant TYPICAL APPLICATIONS

* ZVS phase shifted and other full bridge

* Half

APT7F80K_MicrosemiCorporation.pdf

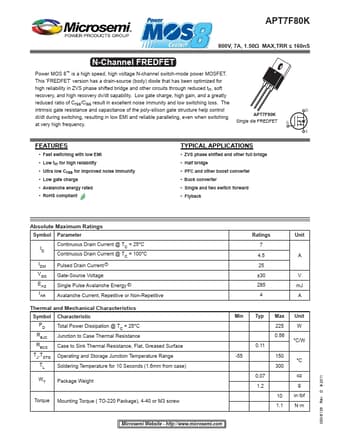

Preview of APT7F80K PDF
APT7F80K Datasheet Preview Page 2 APT7F80K Datasheet Preview Page 3

Datasheet Details

Part number:

APT7F80K

Manufacturer:

Microsemi ↗ Corporation

File Size:

211.29 KB

Description:

N-channel fredfet.
