APT7F120S - N-Channel FREDFET

APT7F120B APT7F120S 1200V, 7A, 2.90Ω Max, trr ≤190ns N-Channel FREDFET Power MOS 8™ is a high speed, high voltage N-channel switch-mode power MOSFET.

This 'FREDFET' version has a drain-source (body) diode that has been optimized for high reliability in ZVS phase shifted bridge and other circuits through reduced trr, soft www.DataSheet4U.net recovery, and high recovery dv/dt capability.

Low gate charge, high gain, and a greatly reduced ratio of Crss/Ciss result in excellent noise immunity and lo

APT7F120S Features

* Fast switching with low EMI

* Low trr for high reliability

* Ultra low Crss for improved noise immunity

* Low gate charge

* Avalanche energy rated

* RoHS compliant TYPICAL APPLICATIONS

* ZVS phase shifted and other full bridge

* Half

APT7F120B_MicrosemiCorporation.pdf

This datasheet PDF includes multiple part numbers: APT7F120S, APT7F120B. Please refer to the document for exact specifications by model.

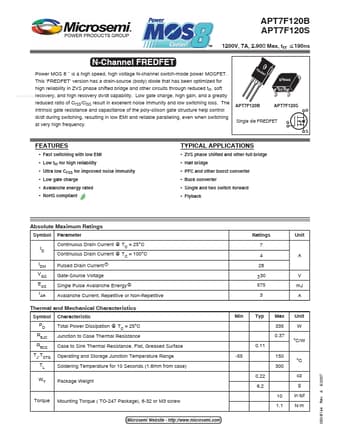

APT7F120S Datasheet Preview Page 2 APT7F120S Datasheet Preview Page 3
