CDLL4150 Datasheet - Microsemi Corporation

CDLL4150 SWITCHING DIODE

1N4150UR-1 AVAILABLE IN JAN, PER MIL-PRF-19500/231 SWITCHING DIODE HERMETICALLY SEALED METALLURGICALLY BONDED DOUBLE PLUG CONSTRUCTION JANTX, AND JANTXV 1N4150UR-1 1N3600UR CDLL4150 CDLL3600 MAXIMUM RATINGS Junction Temperature: -65°C to +175°C Storage Temperature: -65°C to +175°C Operating Current: 300 mA @ TA = + 25°C Derating: 3.1 mA dc/°C Above TEC = + 110°C Forward Surge Current: 4A, (tp = 1µs); 0.5A (tp = 1s) ELECTRICAL CHARACTERISTICS .

CDLL4150_MicrosemiCorporation.pdf

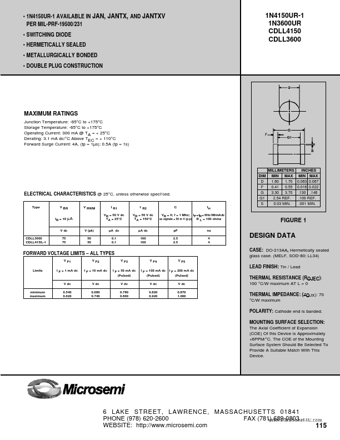

Preview of CDLL4150 PDF
CDLL4150 Datasheet Preview Page 2

Datasheet Details

Part number:

CDLL4150

Manufacturer:

Microsemi ↗ Corporation

File Size:

49.42 KB

Description:

Switching diode.
