JAN2N2609 Datasheet - Microsemi Corporation

JAN2N2609 P-CHANNEL J-FET

TECHNICAL DATA P-CHANNEL J-FET Qualified per MIL-PRF-19500/296 Devices 2N2609 Qualified Level JAN ABSOLUTE MAXIMUM RATINGS (TA = +250C unless otherwise noted) Parameters / Test Conditions Symbol Value Gate-Source Voltage Power Dissipation (1) TA = +250C Operating Junction & Storage Temperature Range (1) Derate linearly 1.71 mW/0C for TA > +250C. VGSS PD Top, Tstg 30 300 -65 to +200 Units V mW 0 C TO-18 (TO-206AA) See appendix A for package outline ELECTRICAL CHARACTERISTICS (TA = +250C u.

JAN2N2609_MicrosemiCorporation.pdf

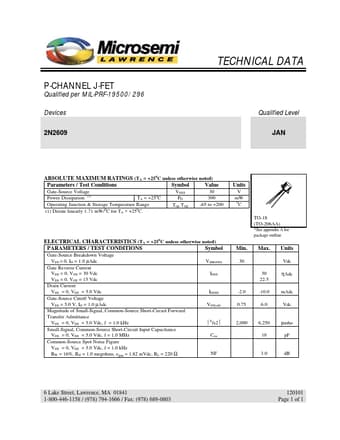

Preview of JAN2N2609 PDF

Datasheet Details

Part number:

JAN2N2609

Manufacturer:

Microsemi ↗ Corporation

File Size:

45.41 KB

Description:

P-channel j-fet.
