JAN2N2060 Datasheet - Microsemi

JAN2N2060 UNITIZED DUAL NPN SILICON TRANSISTOR

TECHNICAL DATA UNITIZED DUAL NPN SILICON TRANSISTOR Qualified per MIL-PRF-19500/270 Devices 2N2060 2N2060L Qualified Level JAN JANTX JANTXV MAXIMUM RATINGS Ratings Symbol 2N2060 Unit Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current VCEO VCBO VEBO IC 60 100 7.0 500 One Both Vdc Vdc Vdc mAdc Total Power Dissipation @ TA = +250C (1) @ TC = +250C (2) Section Sections PT 540 600 1.5 2.12 Operating & Storage Junction Temperature Range TJ, Tstg .

JAN2N2060-Microsemi.pdf

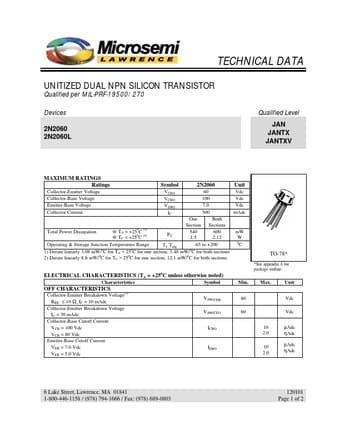

Preview of JAN2N2060 PDF
JAN2N2060 Datasheet Preview Page 2

Datasheet Details

Part number:

JAN2N2060

Manufacturer:

Microsemi ↗

File Size:

45.09 KB

Description:

Unitized dual npn silicon transistor.
