LX1562

SECOND-GENERATION POWER FACTOR CONTROLLER

LX1562 Features

* include the addition of an internal start-up circuit eliminating bulky external components while allowing independent boost converter operation. Addition of internal current sense blanking eliminating the need for an external R/C filter network. Internal clamping of the error amplifier and multiplie

LX1562 General Description

The LX1562 is a second-generation family of power factor correction controllers using a discontinuous mode of operation. They are optimized for electronic ballast applications. Many improvements have been made over the original SG3561A controller introduced by Silicon General Semiconductor in 1992. .

LX1562 Datasheet (443.25 KB)

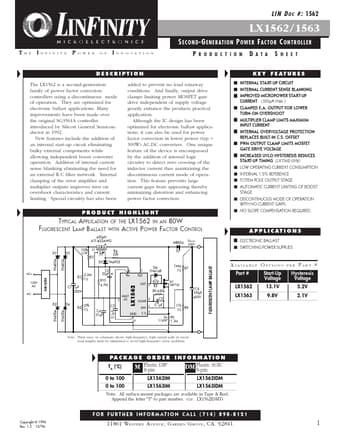

Preview of LX1562 PDF

Datasheet Details

Part number:

LX1562

Manufacturer:

Microsemi ↗ Corporation

File Size:

443.25 KB

Description:

Second-generation power factor controller.
L I N D O C # : 1562 LX1562/1563 S E C O N D -G E N E R AT I O N P O W E R F A C T O R C O N T R O L L E R T H E I N F I N I T E P O W E R O F .
