LX1563 - SECOND-GENERATION POWER FACTOR CONTROLLER

Product Overview

Microsemi Corporation

Part number	LX1563
Manufacturer	Microsemi Corporation
File Size	443.25 KB
Description	SECOND-GENERATION POWER FACTOR CONTROLLER
Datasheet	LX1563 Datasheet
Note	This datasheet PDF includes multiple part numbers: LX1563, LX1. Please refer to the document for exact specifications by model.

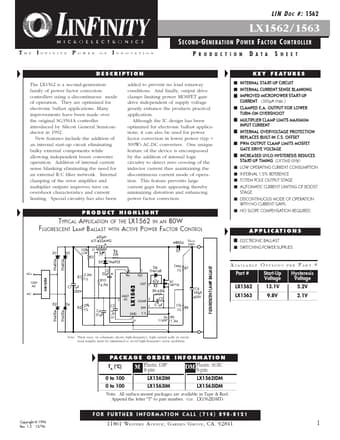

Additional preview pages of the LX1563 datasheet.

The LX1562 is a second-generation family of power factor correction controllers using a discontinuous mode of operation.

include the addition of an internal start-up circuit eliminating bulky external components while allowing independent boost converter operation. Addition of internal current sense blanking eliminating the need for an external R/C filter network. Internal clamping of the error amplifier and multiplier outputs improves turn on overshoot characteristics and current limiting. Special circuitry has also been added to prevent no load runaway conditions. And finally, output drive clamps limiting power.
