1N4554B, 1N4549B Datasheet - Microsemi

1N4554B 50WATT ZENER DIODES

These high power 50 W Zener diodes represented by the JEDEC registered 1N3305 thru 1N3350B and 1N4549 thru 1N4556B series provide voltage regulation in a selection over a 3.9 V to 200 V broad range of voltages. They may be operated up to 50 W with adequate mounting and heat sinking with their low th.

1N4554B Features

* JEDEC registered 1N3305 thru 1N3350B and 1N4549 thru 1N4556B

* Internal solder bond construction

* Hermetically sealed (welded)

* Zener Voltage 3.9V to 200V.

* Also available in JAN, JANTX, and JANTXV qualifications per MIL-PRF-19500/358 by adding the JAN, J

1N4549B-Microsemi.pdf

This datasheet PDF includes multiple part numbers: 1N4554B, 1N4549B. Please refer to the document for exact specifications by model.

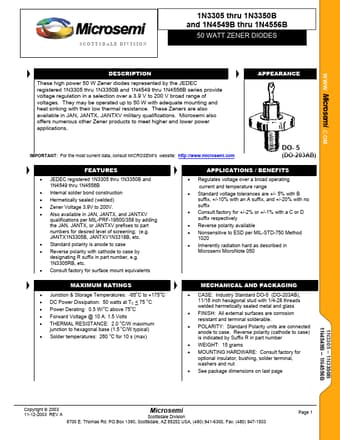

1N4554B Datasheet Preview Page 2 1N4554B Datasheet Preview Page 3

Datasheet Details

Part number:

1N4554B, 1N4549B

Manufacturer:

Microsemi ↗

File Size:

188.17 KB

Description:

50watt zener diodes.

Note:

This datasheet PDF includes multiple part numbers: 1N4554B, 1N4549B.
Please refer to the document for exact specifications by model.
