1N4555 50WATTS ZENER DIODES

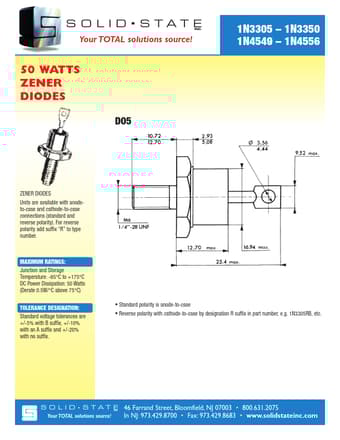

S O LID STATE INC. Your TOTAL solutions source! 50 WATTS ZENER DIODES DO5 1N3305 1N3350 1N4549 1N4556 ZENER DIODES Units are available with anodeto-case and cathode-to-case connections (standard and reverse polarity). For reverse polarity add suffix “R” to type number. MAXIMUM RATINGS: Junction and Storage Temperature: -65°C to +175°C DC Power Dissipation: 50 Watts (Derate 0.5W/°C above 75°C) TOLERANCE DESIGNATION: Standard voltage tolerances are +/-5% with B suffix, +/-1.
