1N4555B, 1N4549B 50WATT ZENER DIODES

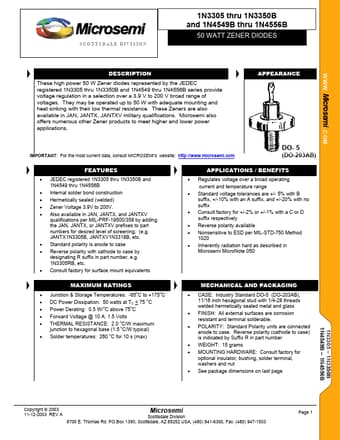

📥 Download Datasheet  Datasheet Preview Page 1

Description

WWW.Microsemi .COM SCOTTSDALE DIVISION 1N3305 thru 1N3350B and 1N4549B thru 1N4556B 50 WATT ZENER DIODES .
These high power 50 W Zener diodes represented by the JEDEC registered 1N3305 thru 1N3350B and 1N4549 thru 1N4556B series provide voltage regulation i.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N4555B, 1N4549B. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
1N4555B, 1N4549B
Manufacturer
Microsemi ↗
File Size
188.17 KB
Datasheet
1N4549B-Microsemi.pdf
Description
50WATT ZENER DIODES
Note
This datasheet PDF includes multiple part numbers: 1N4555B, 1N4549B.
Please refer to the document for exact specifications by model.

Features

* JEDEC registered 1N3305 thru 1N3350B and 1N4549 thru 1N4556B
* Internal solder bond construction
* Hermetically sealed (welded)
* Zener Voltage 3.9V to 200V.
* Also available in JAN, JANTX, and JANTXV qualifications per MIL-PRF-19500/358 by adding the JAN, J
